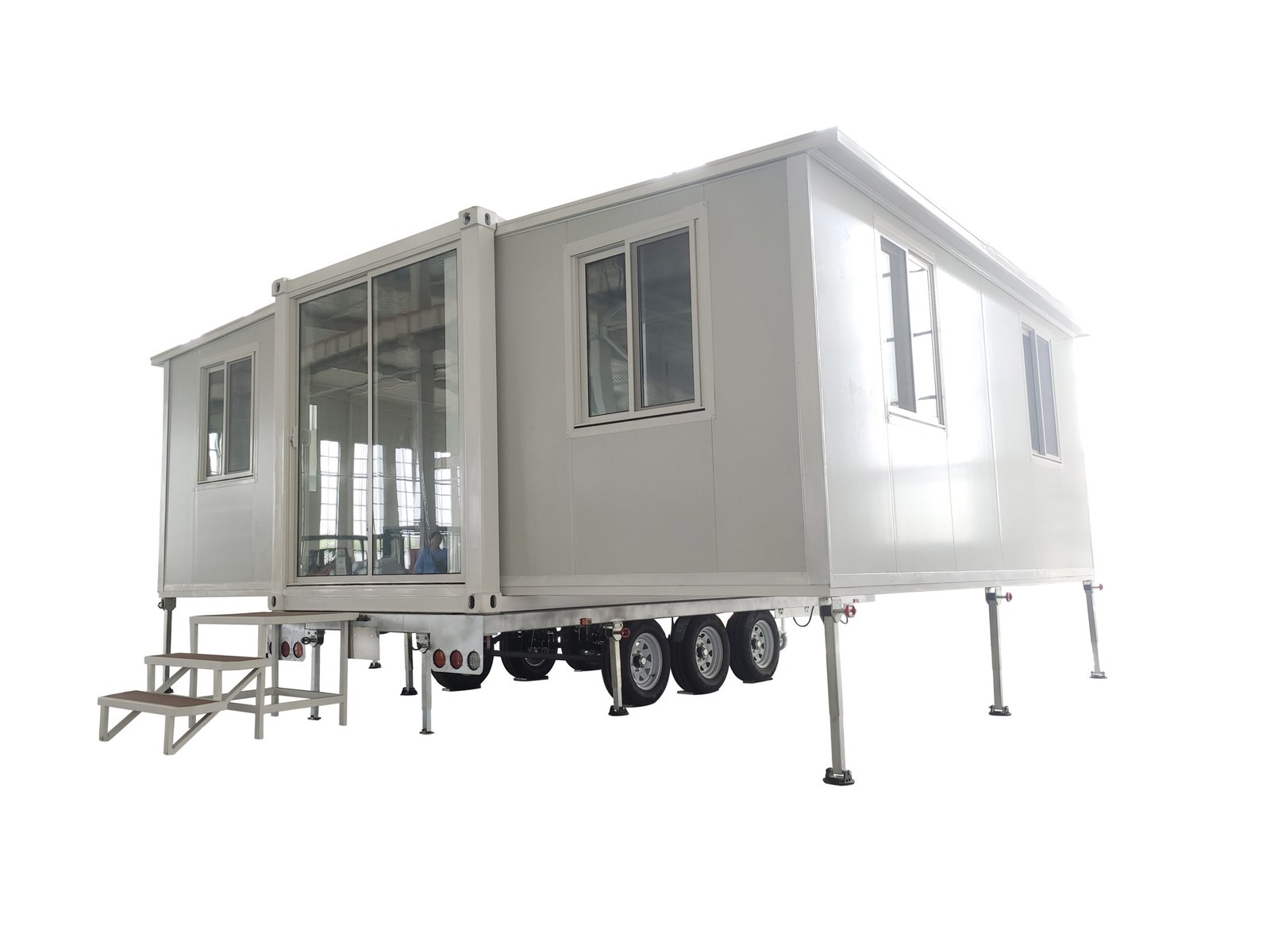

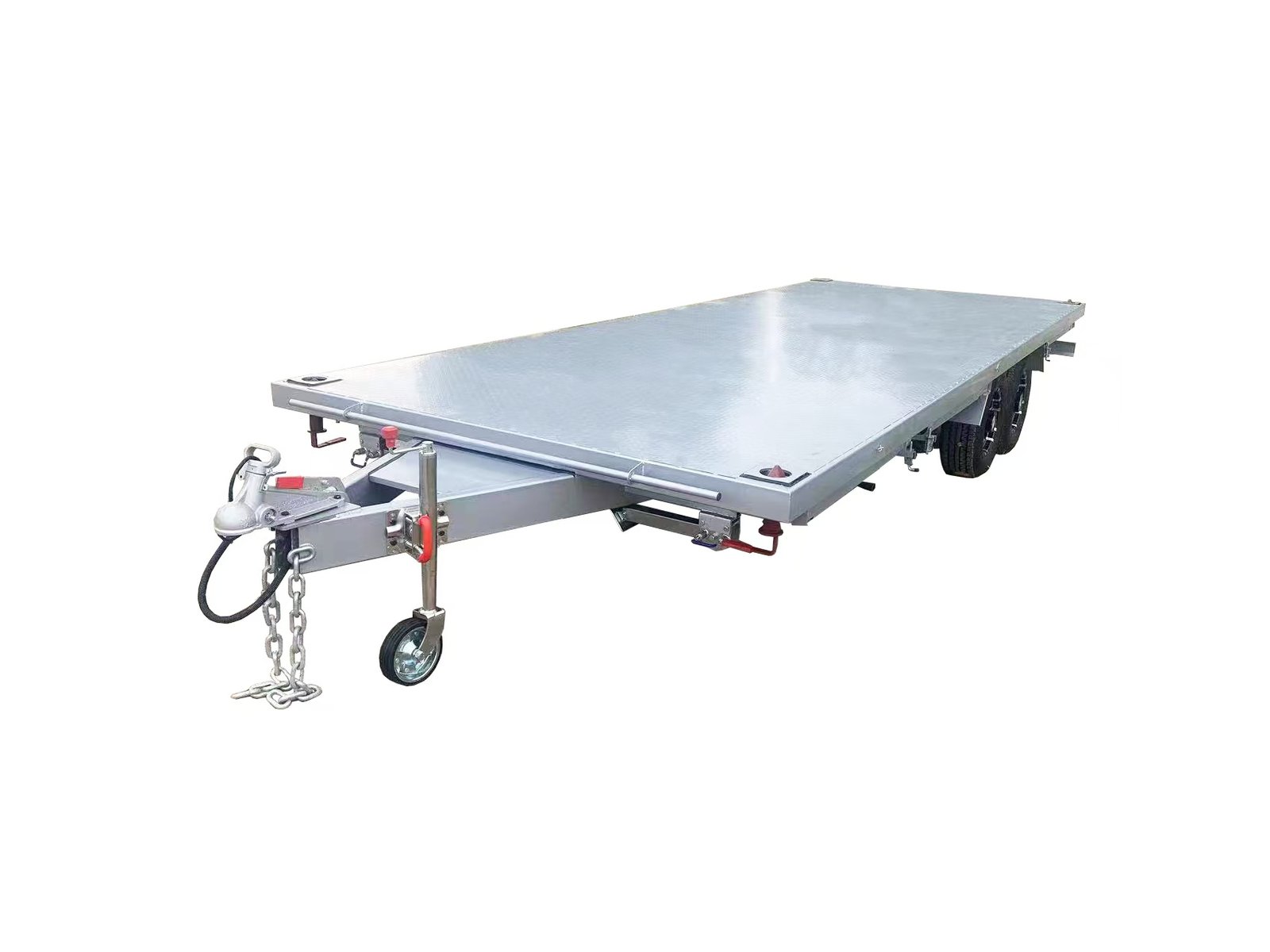

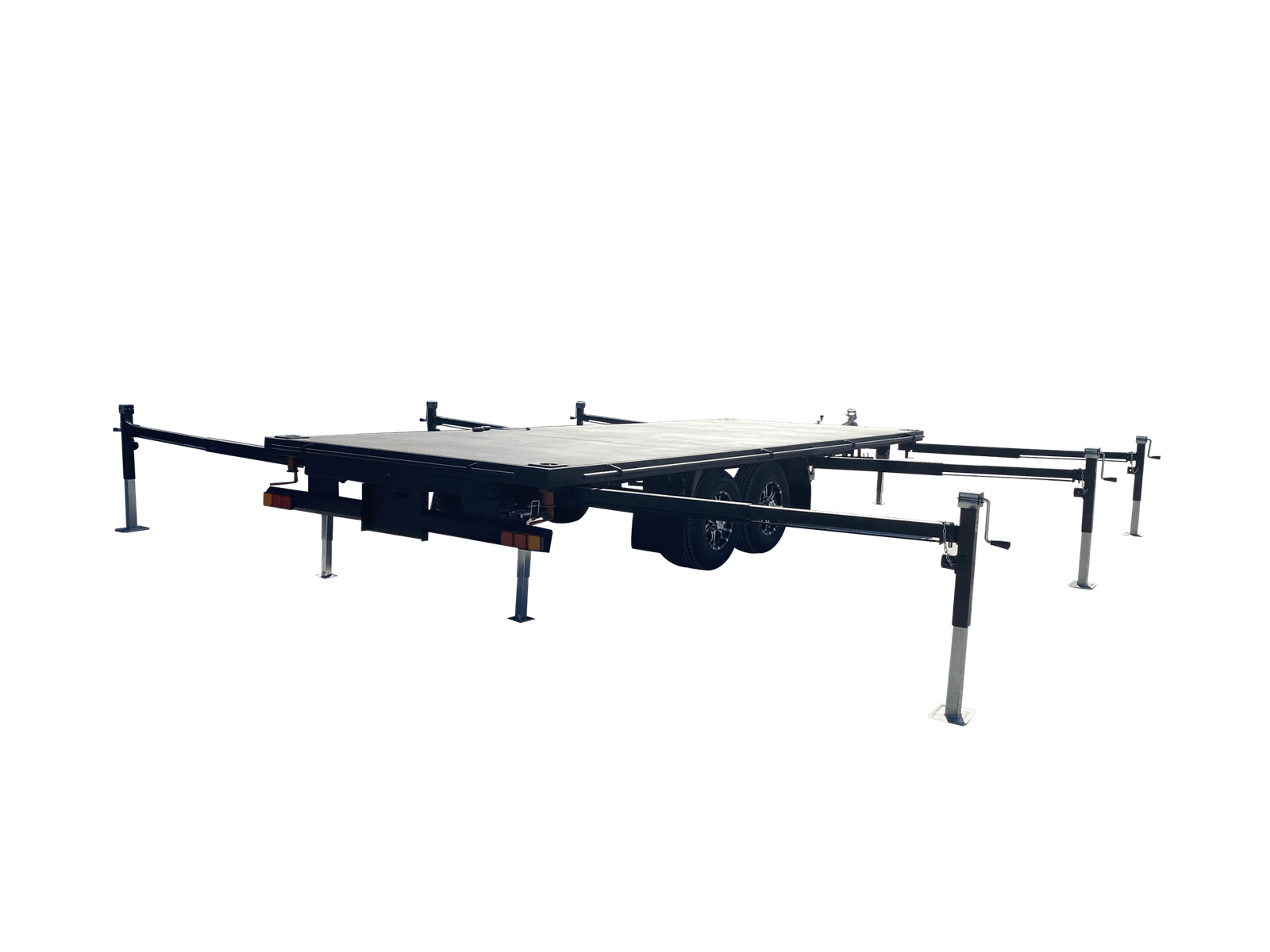

This 20ft house trailer is engineered for transporting modular buildings, mobile structures, or tiny homes. With a 4000kg ATM, fully welded frame, and 9-leaf rocker roller suspension, it offers strength and stability for heavy-duty use. The trailer features a wide internal deck, 10” electric drum brakes, and four adjustable support legs for secure setup.

The finish uses durable spray molding, and color options can be customized. A VIN number is included for registration. Suitable for commercial or private building transport projects.

• Trailer Size: 20 feet × 7 feet

• Internal Deck Size: 5950mm × 2250mm

• ATM (Aggregate Trailer Mass): 4000 kg

• Tare Weight: 1000 kg

• Tow Bar: 920mm × 120 × 50 × 5mm

• Axle: 55mm solid

• Suspension: 9-leaf rocker roller

• Brake System: 10-inch electric drum brake

• Surface Finish: Spray molding

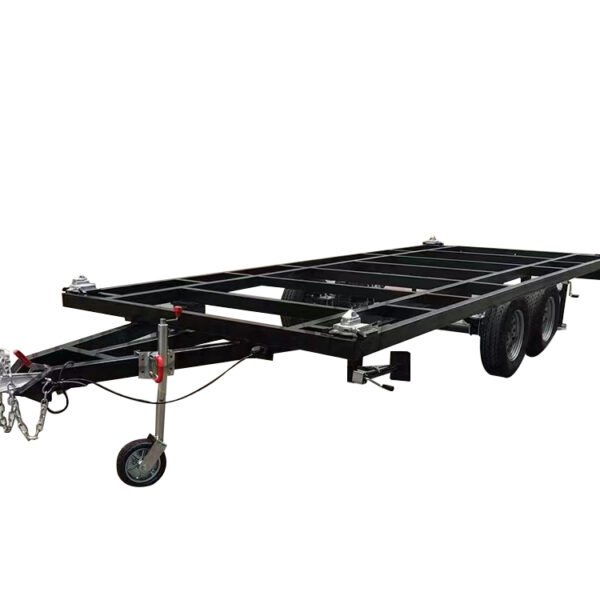

• Frame: Fully welded

• Checker Plate Floor: 2.5mm patterned plate

• Main Beam: 100 × 50 × 30mm

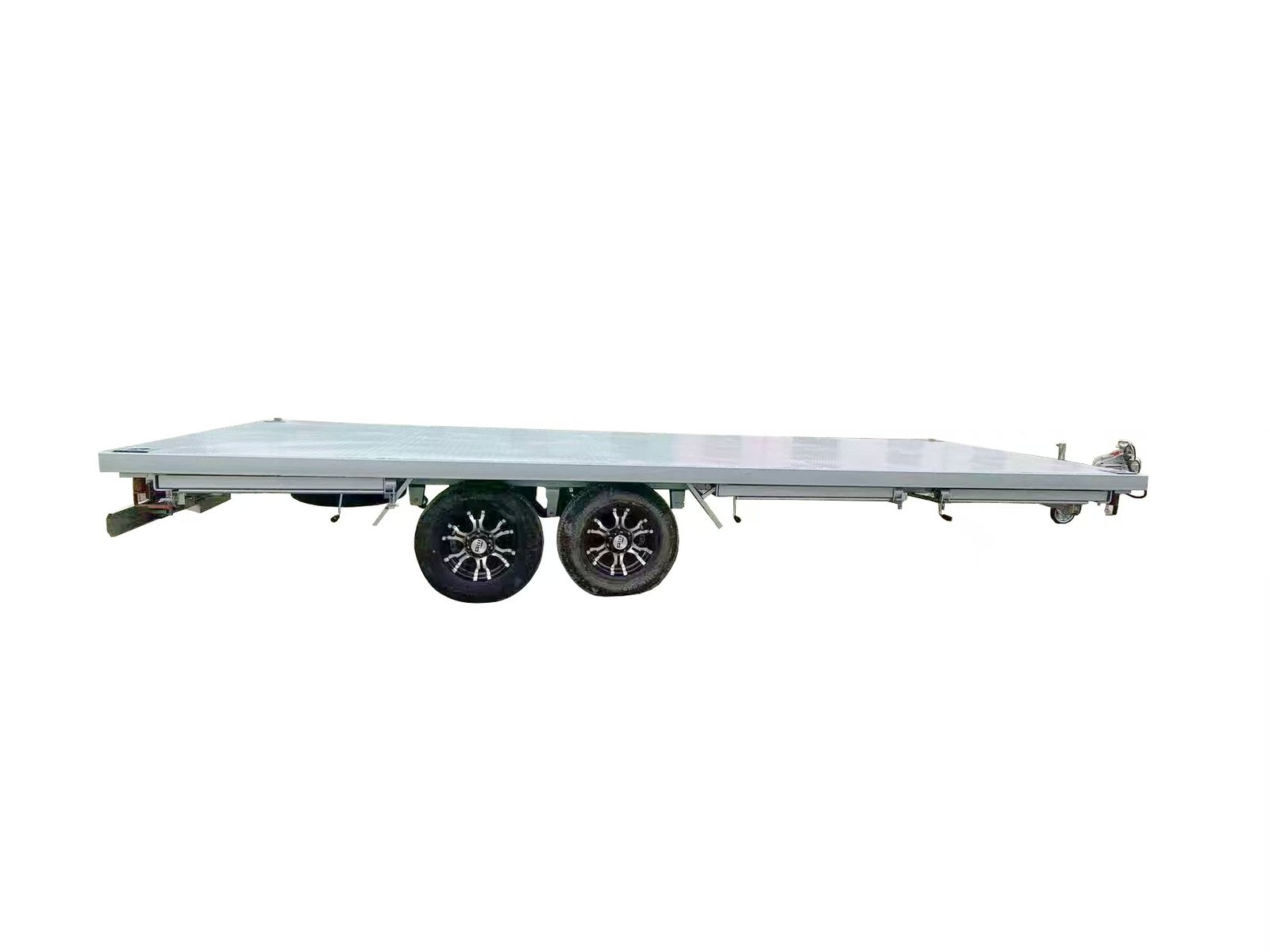

• Wheels & Tyres: 215/75R15 light truck tyres

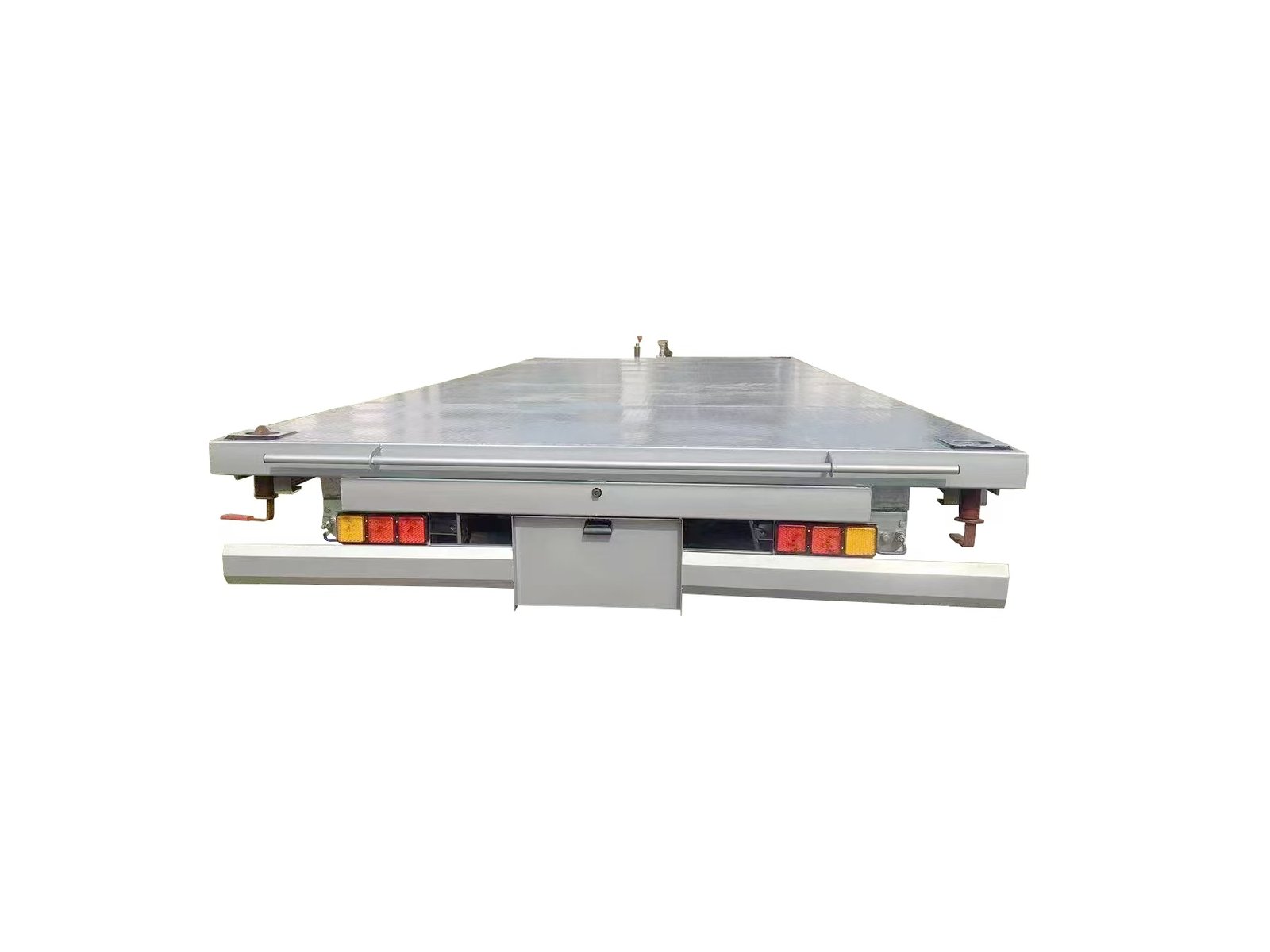

• Lighting: LED ADR-compliant lights

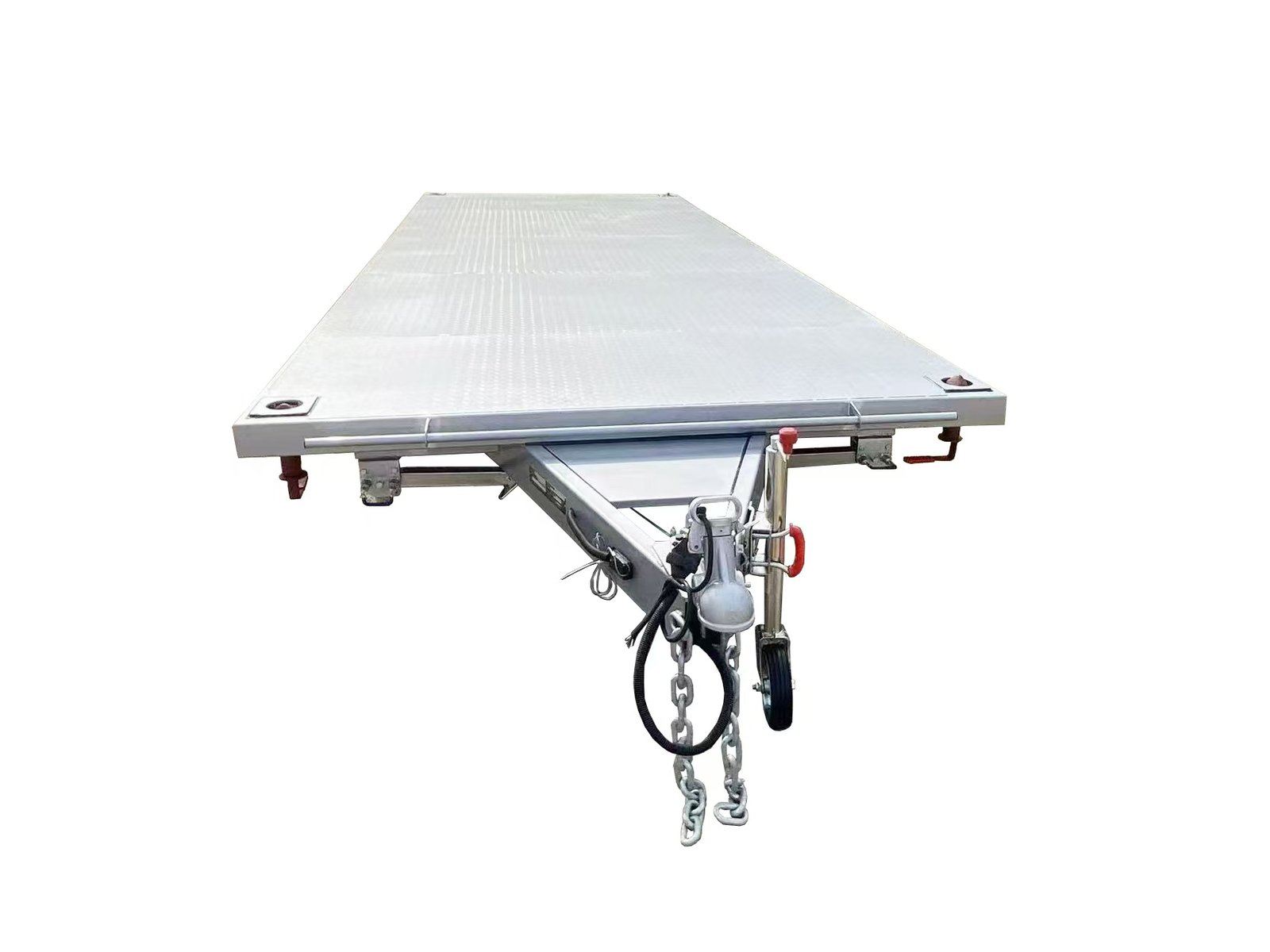

• Guide Wheel: 10” rotating

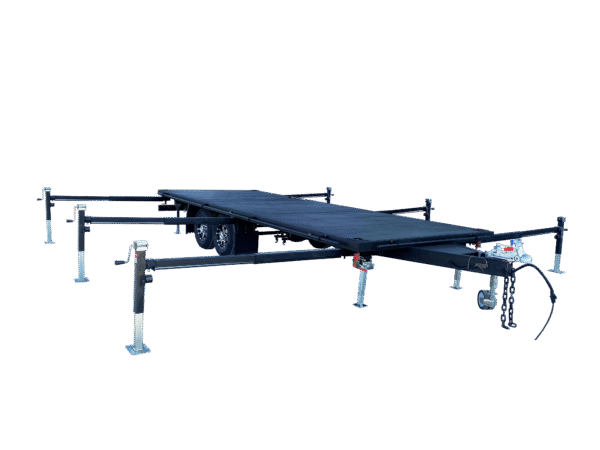

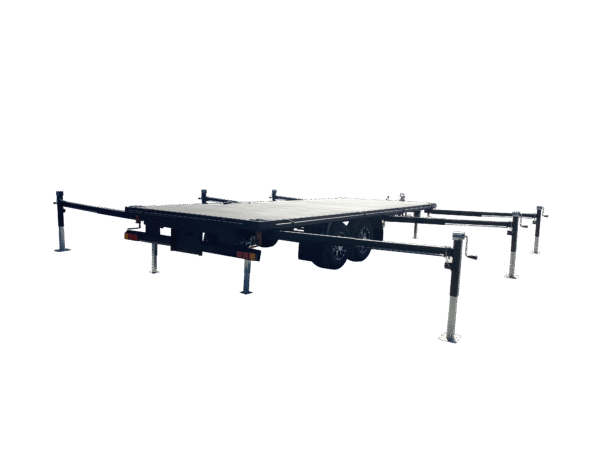

• Support Legs: 4 adjustable legs

• Color: Customizable

• EXW Price: USD $3673 (includes VIN number)
